Methods

VLab4Mic exposes two high-level functions that cover the main simulation workflows.

---

image_vsample — Create and Image a Virtual Sample

image_vsample creates a virtual sample from a structural model, applies fluorescent labelling, and generates imaging simulations across one or more microscopy modalities.

from vlab4mic.experiments import image_vsample

images, noiseless, experiment = image_vsample()

The function returns:

• images — dictionary of simulated images with noise, keyed by modality name
• noiseless — dictionary of noiseless simulated images, keyed by modality name
• experiment — object containing all modules used to generate the simulation

Basic Usage

Running with default parameters creates a virtual sample with a default structure and probe:

from vlab4mic.experiments import image_vsample

images, noiseless, experiment = image_vsample(run_simulation=True)

Parameterized Usage

Specify each aspect of the virtual sample and imaging:

from vlab4mic.experiments import image_vsample

modalities = ["Widefield", "Confocal", "AiryScan", "STED", "SMLM"]

images, noiseless, experiment = image_vsample(
    structure="7R5K",              # PDB ID for a Nuclear Pore Complex
    probe_template="Antibody",     # Probe template
    probe_target_type="Sequence",
    probe_target_value="ELAVGSL",  # Epitope sequence
    number_of_particles=10,
    random_rotations=True,
    rotation_angles=None,
    multimodal=modalities,
    STED={"exp_time": 0.01},       # Modality-specific parameters
    expansion_factor=1,            # Scale factor for structure coordinates
    random_seed=42,                # Set for reproducibility
    run_simulation=True,
    clear_experiment=True,
)

Using Structure-Specific Probe Templates

For common structures, pre-configured probe templates are available:

from vlab4mic.experiments import image_vsample

images, noiseless, experiment = image_vsample(
    structure="7R5K",
    probe_templates=["NPC_Nup96_Cterminal_direct"],
    run_simulation=True,
    clear_experiment=True,
)

See the Templates page for the full list of available probes.

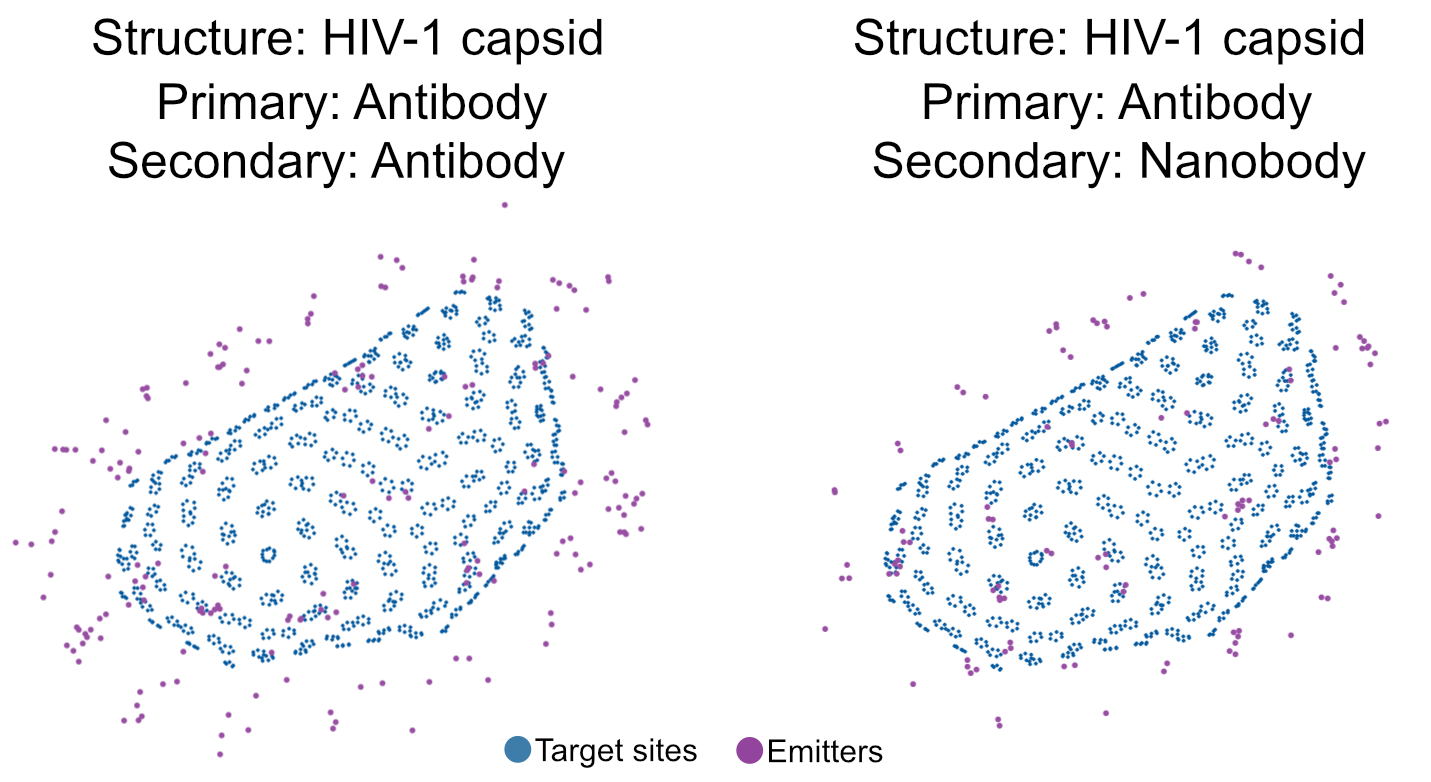

Indirect Labelling (Primary + Secondary Probe)

For indirect labelling, pass primary_probe and secondary_probe instead of a single probe_template:

from vlab4mic.experiments import image_vsample

images, noiseless, experiment = image_vsample(
    structure="3J3Y",
    primary_probe="HIV_capsid_p24_direct",
    secondary_probe="anti-p24_primary_antibody_HIV",
    multimodal=["SMLM"],
    run_simulation=True,
)

Displaying Simulation Results

import matplotlib.pyplot as plt

nmods = len(modalities)
fig, axs = plt.subplots(1, nmods)
for i, mod in enumerate(modalities):
    axs[i].imshow(images[mod][0], cmap="magma")
    axs[i].set_title(mod)
plt.show()

---

run_parameter_sweep — Sweep Over Parameter Combinations

run_parameter_sweep systematically generates and analyses simulations over combinations of parameter values.

from vlab4mic.sweep_generator import run_parameter_sweep

sweep_gen = run_parameter_sweep(
    output_name="my_sweep",
    return_generator=True,
    save_sweep_images=True,
    save_analysis_results=True,
    run_analysis=True,
)

Specifying Sweep Parameters

Pass parameter values as a list of explicit values, or as a tuple (min, max, nsteps) to generate linearly spaced values:

from vlab4mic.sweep_generator import run_parameter_sweep

sweep_gen = run_parameter_sweep(
    structures=["7R5K"],
    probe_templates=["NPC_Nup96_Cterminal_direct"],
    sweep_repetitions=20,
    # Parameters to sweep
    labelling_efficiency=(0, 1, 5),              # 5 values from 0 to 1
    structural_integrity=(0, 1, 5),              # 5 values from 0 to 1
    structural_integrity_small_cluster=[300],    # Single value
    structural_integrity_large_cluster=[600],    # Single value
    exp_time=[0.001, 0.01],                      # Two values
    # Output options
    output_name="my_sweep",
    return_generator=True,
    save_sweep_images=True,
    save_analysis_results=True,
    run_analysis=True,
    random_seed=42,                              # Reproducible sweep
)

Combinatorial growth

All parameter combinations are tested. Setting 10 values for labelling_efficiency and 10 values for structural_integrity generates 100 combinations. Plan accordingly.

Available Sweep Parameters

The following parameters can be swept (pass None to use the default value):

Category	Parameter
Probe	probe_target_type, probe_target_value, probe_target_option, probe_model, probe_fluorophore, probe_paratope, probe_conjugation_target_info, probe_secondary_epitope, peptide_motif
Probe geometry	probe_distance_to_epitope, probe_steric_hindrance, probe_DoL, probe_wobble_theta
Labelling	labelling_efficiency
Structural integrity	structural_integrity, structural_integrity_small_cluster, structural_integrity_large_cluster
Virtual sample	sample_dimensions, particle_orientations, rotation_angles, minimal_distance
Imaging	pixelsize_nm, lateral_resolution_nm, axial_resolution_nm, psf_voxel_nm, depth_of_field_nm
Acquisition	exp_time
